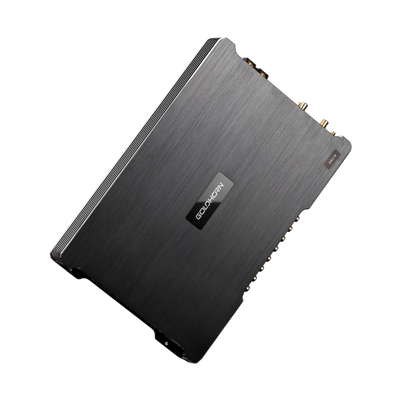

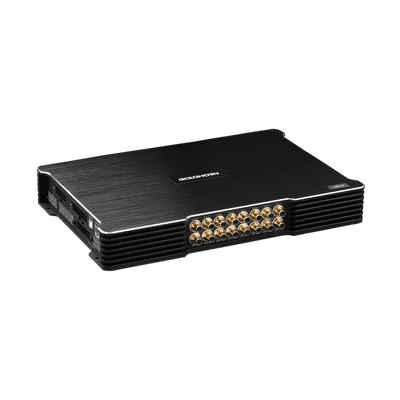

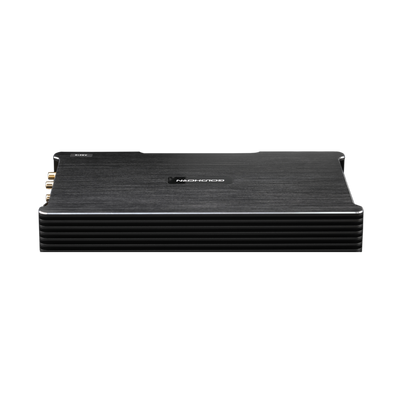

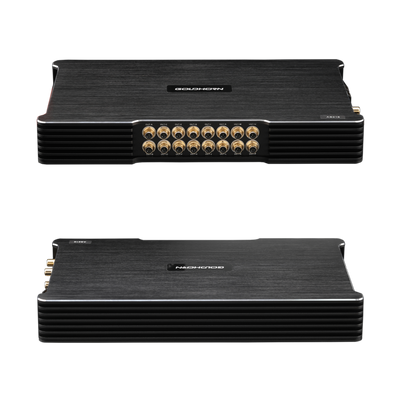

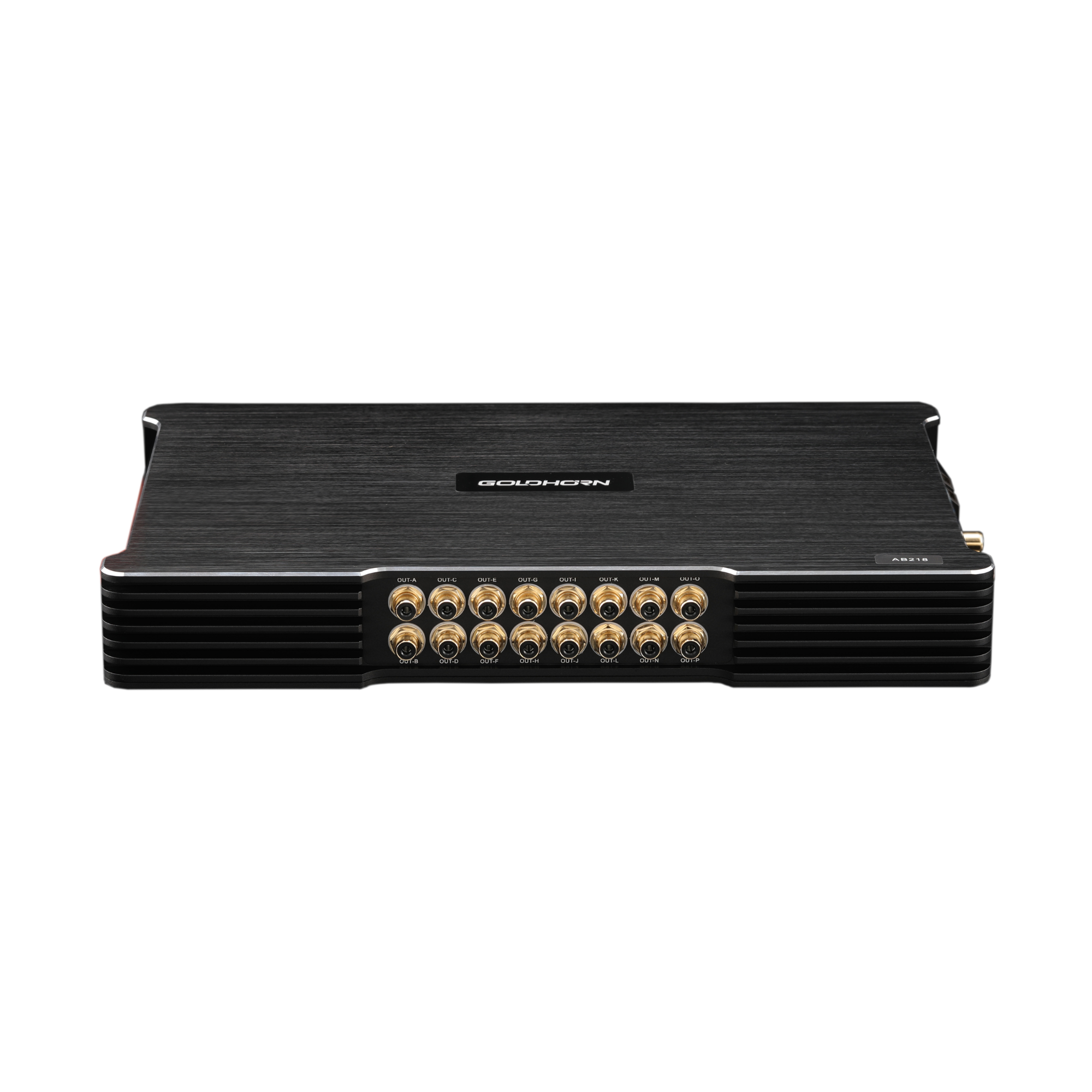

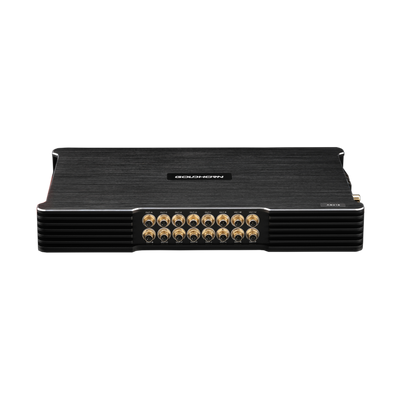

• Product type: Vehicle-specific A²B DSP amplifier

• Model / MPN: AB218

• Digital input: A²B bus input

• DSP processing channels: 28

• Amplified output channels: 20

• High-level outputs: 20

• Output at 4 ohms: 16 × 80W + 4 × 150W

• Output at 2 ohms: 16 × 80W + 2 × 200W

• Manufacturer-rated total power: Up to 2200W

• Frequency response: 20Hz–40kHz

• Total harmonic distortion: 0.03%

• Signal-to-noise ratio: 100dB

• Damping factor: 100

• DSP chipset: 2 × ADI ADAU1463

• DAC chipset: AKM, up to 768kHz / 32-bit

• ADC chipset: Texas Instruments, up to 192kHz / 32-bit

• Bluetooth: Bluetooth 5.0 with aptX HD support

• Surround processing: Goldhorn Skyatom

• Factory feature compatibility: Designed to retain ANC and factory microphone operation
• Software support: Vehicle configuration, firmware updates and professional DSP tuning

• Installation: Vehicle-specific plug-and-play harness required

• Dimensions: 331 × 217 × 43mm

• Weight: 3.7kg

• Direct A²B signal extraction bypasses unnecessary factory amplifier conversion stages

• Twenty amplified channels can replace complex multi-channel OEM amplifier systems

• Twenty-eight-channel DSP provides extensive control for active and surround audio configurations

• Designed to retain active noise cancellation, voice control and factory microphone functionality

• Vehicle-specific harnessing allows a reversible installation without cutting the original wiring

• Compatible electric and new-energy vehicles using an A²B communication bus, e.g. select Tank / BYD vehicles
• Premium OEM systems requiring complete factory amplifier replacement
• Multi-way active systems with numerous speaker locations

• Vehicle-specific upgrades where ANC and factory functions must be retained

• Professional installers requiring high channel count, integrated amplification and detailed DSP control

The AB218’s strongest advantage is its ability to access the vehicle’s native A²B signal while replacing a complex multi-channel factory amplifier. That provides a much cleaner foundation for tuning than converting an already processed analogue signal, while retaining the integration modern EV owners expect.

The Goldhorn AB218 is not a universal amplifier. Compatibility depends on the vehicle’s factory A²B architecture, firmware and the availability of the correct vehicle-specific plug-and-play harness.

Confirm the exact vehicle model, production year, factory audio system and required harness before ordering. Installation and professional DSP tuning are recommended to achieve the intended performance and maintain correct factory-system operation.

Xiaomi (AB218 V1.3 version)

• SU7

• SU7 Ultra

• YU7


BYD Dynaudio Systems

• Denza D9

• Han

• Tang

• Seal

• Sealion

• Fangchengbao Tai 7


BYD Devialet Systems

• Denza D9, 2025

• Denza Z9GT

• Denza N9

• Fangchengbao Leopard 5

• Fangchengbao Leopard 8

• Fangchengbao Leopard 8, 5-seater version

• Fangchengbao Tai 3


Li Auto

• L6

• L7

• L8

• L9

• MEGA

• i6

• i8


AITO

• M5

• M5 Ultra, 2025

• M7

• M7, 2026

• M8

• M9


STELATO / Luxeed

• STELATO S9

• STELATO S9T

• Luxeed R7

• Luxeed S7


NIO, NT2.0 Platform

• ET5
• ET7

• ES6

• ES8

• EC6

• EC7


XPeng

• G9

• X9

• G6

• P7+


Avatr (AB218 V1.3 version)

• Avatr 11, 2023, Pioneer Audio

• Avatr 12, 2023, Pioneer Audio

• Avatr 11, Meridian Audio

• Avatr 12, Meridian Audio

GWM Tank

• Tank 300

• Tank 400 Hi4-T

• Tank 500 Hi4-T

• Tank 500 Hi4-Z


GWM WEY (AB218 V1.3 version)

• WEY Lanshan, 2025

• WEY Lanshan, 2023

• WEY Gaoshan 8, 2025

• WEY Gaoshan 9, 2025


GWM Haval

• Haval Raptor

• Haval Fierce Dragon, 2025


Changan Deepal

• S7

• S07

• S09

• G318

• SL03

• L07, Qiankun


GAC

• Trumpchi M8

• Trumpchi M8, Qiankun

• Trumpchi E9

• GAC AION HYPTEC HT


Voyah

• Voyah Dreamer, Kunpeng

• Voyah Dreamer, Qiankun

• Voyah Dreamer, Dynaudio System, 2024

• Voyah FREE+, 2025


Zeekr (AB218 V1.3 version)

• Zeekr 001, 2023, 8-channel Yamaha amplifier

• Zeekr 7X

• Zeekr 9X


Lynk & Co (AB218 V1.3 version)

• 08 EM-P

• Z10

• 900


BAIC / ONVO (AB218 V1.3 version)

• BAIC BJ40

• ONVO L90


Geely Galaxy

• Galaxy Starshine 8, 2025

• Galaxy M9
