• Subwoofer size: 250 mm (10 inch)

• Nominal impedance: 4 Ω

• Power demand: 200 – 300 W

• Dimensions: 257 mm × 257 mm × 132 mm

• Cosmetic appearance: Black

• Package accessories: Black screws

• Fs (resonance frequency): 32 Hz

• Re (DC resistance): 3.7 Ω

• Sd (cone area): 3300.6 mm²

• Qms: 9.42

• Qes: 0.74

• Qts: 0.68

• Vas: 33.4 L

• Mms (moving mass): 110.6 g

• BL (force factor): 10.59 Tm

• Sensitivity (1W/1m): 83.6 dB

• L1kHz (inductance): 2.9 mH

• Sealed box recommendation: 18–20 L (0.6–0.7 cu.ft)

• Ported box recommendation: Not recommended

• Sound-quality oriented design
• Small-box friendly design (sealed 18–20L recommended)

• Overhung motor design for improved linear movement and lower distortion at higher excursion

• One-piece polypropylene cone for consistent, controlled bass character

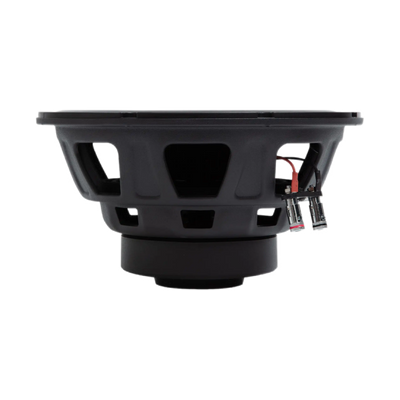

• Cast basket to minimise resonance and unwanted vibration in the install

• Sound quality (SQ) builds needing accurate, musical sub-bass
• Space-limited installs where you can’t run a large enclosure

• Sealed enclosures (18–20L recommended) for tight response and clean integration

• OEM+ style systems where the goal is balance and refinement, not maximum SPL

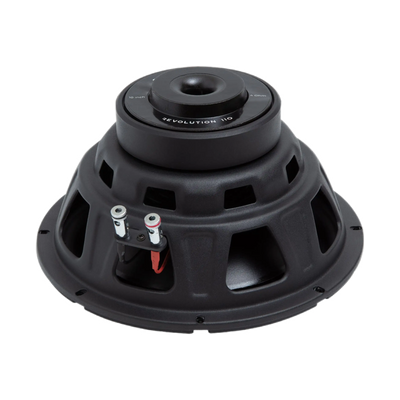

We like subs that don’t demand half a boot to sound good and the Revolution 110 is built exactly for that. The small sealed-box recommendation, the rigid cast basket, and the overhung motor design all point to a sub that’s aimed at controlled, low-distortion bass rather than “one-note” boom. If you’re building an SQ system and want bass that integrates properly, this one makes a lot of sense.
