• Amplifier class: Class AB
• Channels: 4

• Power @ 4 Ω stereo (14.4 V): 70 W per channel

• Power @ 2 Ω stereo (14.4 V): 110 W per channel

• Power @ 4 Ω bridged (14.4 V): 220 W per channel

• Minimum speaker load: 2 Ω

• Input sensitivity: 5 V to 350 mV

• Input impedance @ 1 kHz: 20 kΩ

• Frequency response (-3 dB): 9 Hz – 40 kHz

• THD: 0.09%

• Signal-to-noise ratio (rated power): 102 dB

• Signal-to-noise ratio (CEA-2006, 1 W): 84 dB

• Channel separation (rated power): 58 dB

• Damping factor (20 Hz – 20 kHz): >130

• Weight: 2.1 kg

• Dimensions: 270 mm × 150 mm × 60 mm

• Finish: Brushed Silver

• Class AB 4-channel design focused on clean, direct amplification
• Stable to 2 Ω stereo for flexible speaker pairing

• Bridgeable channels for higher output where needed

• Wide stated bandwidth (9 Hz – 40 kHz, -3 dB) for full-range duties

• No onboard crossover processing (intended to be run full-range or with external processing)

• Front + rear speaker systems needing a compact 4-channel amplifier
• 2-way active front stages when DSP or head unit provides crossovers

• Bridged applications where fewer channels with more power are preferred

• Installations where space is limited but Class AB topology is required

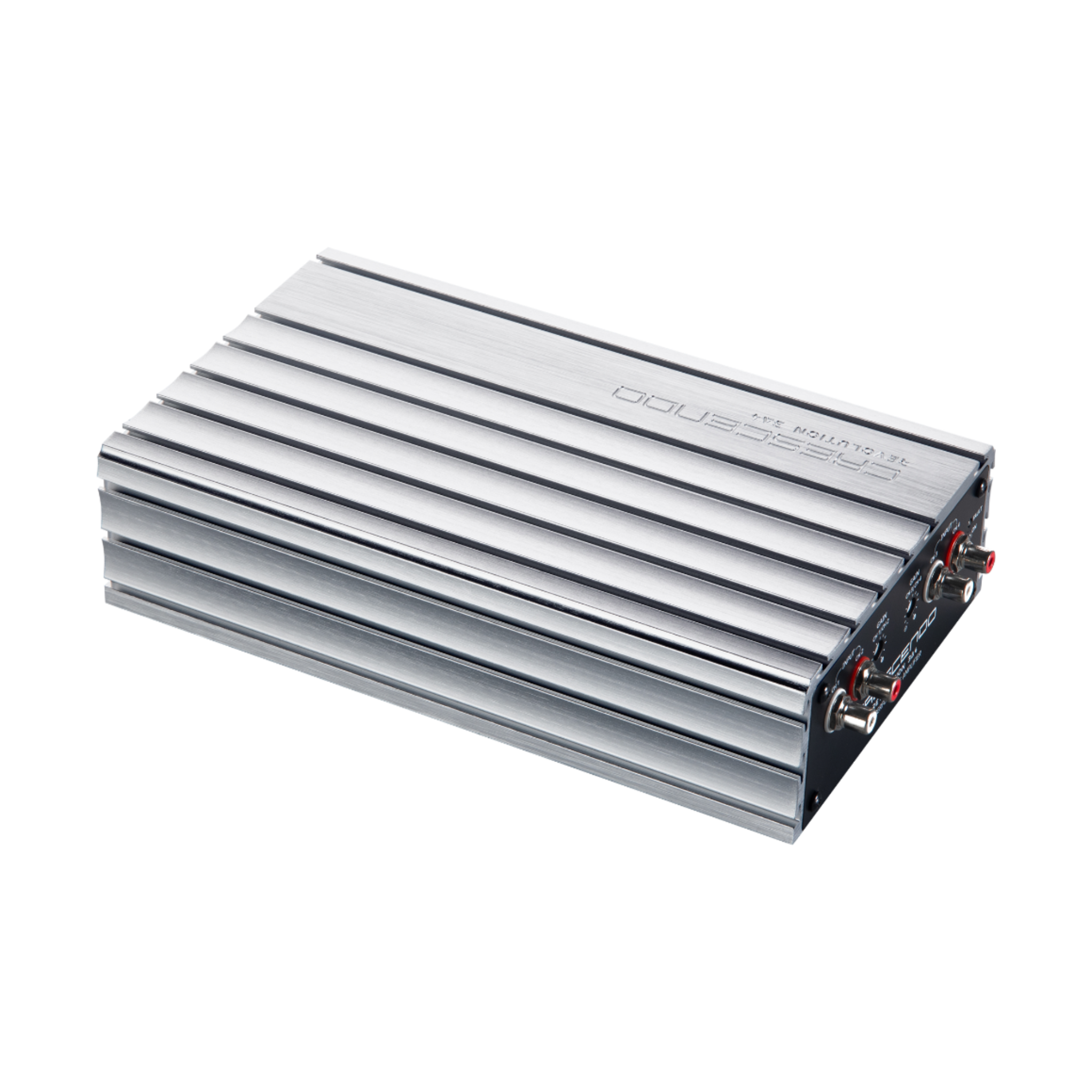

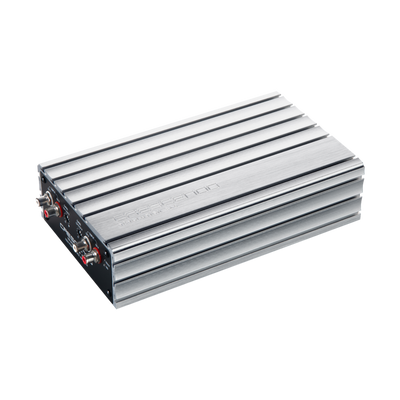

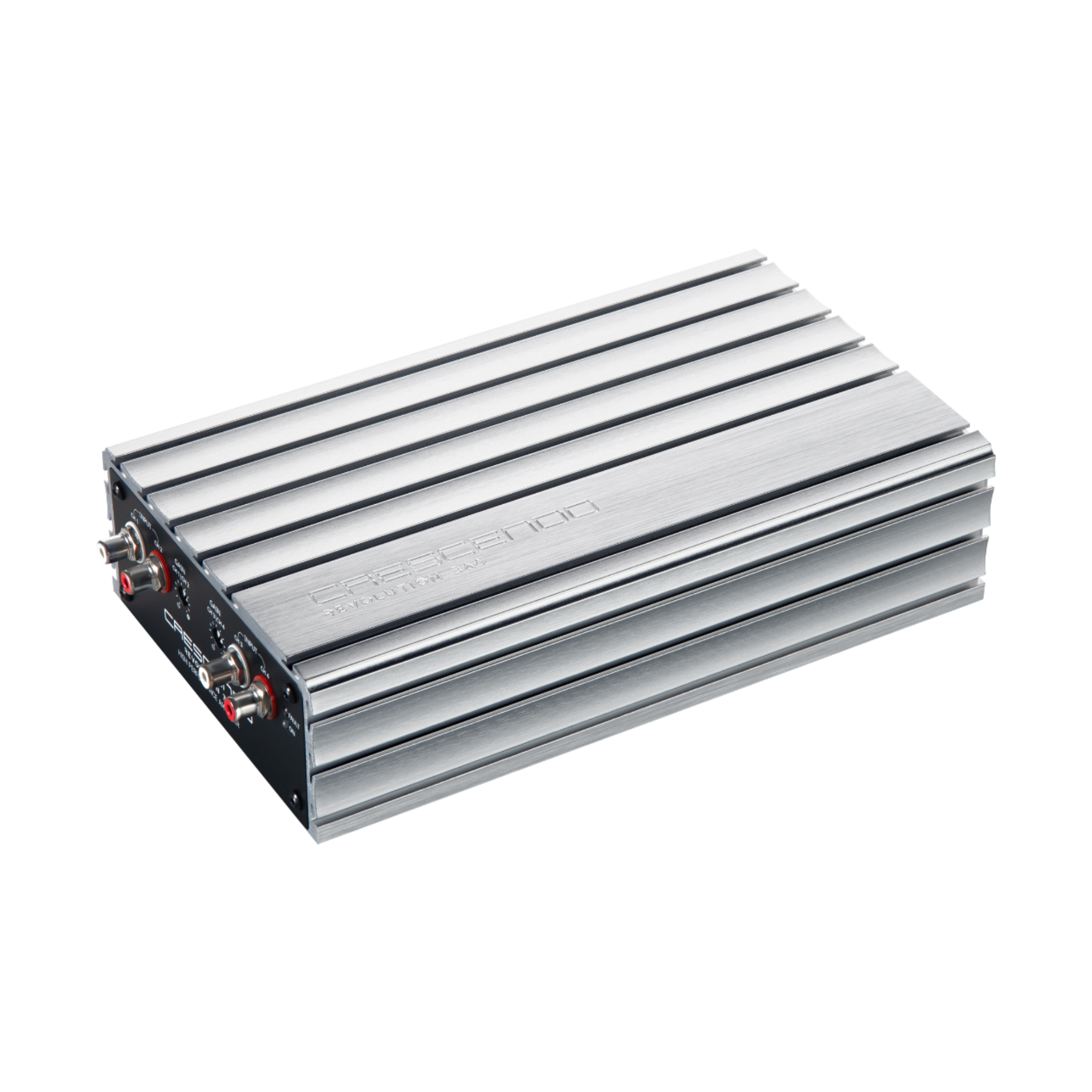

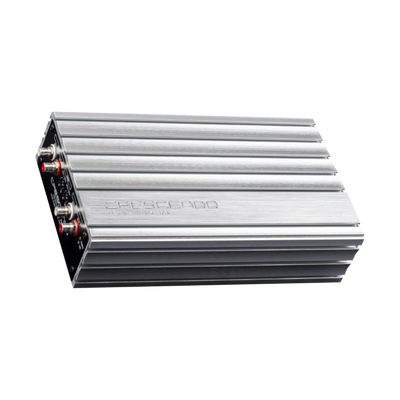

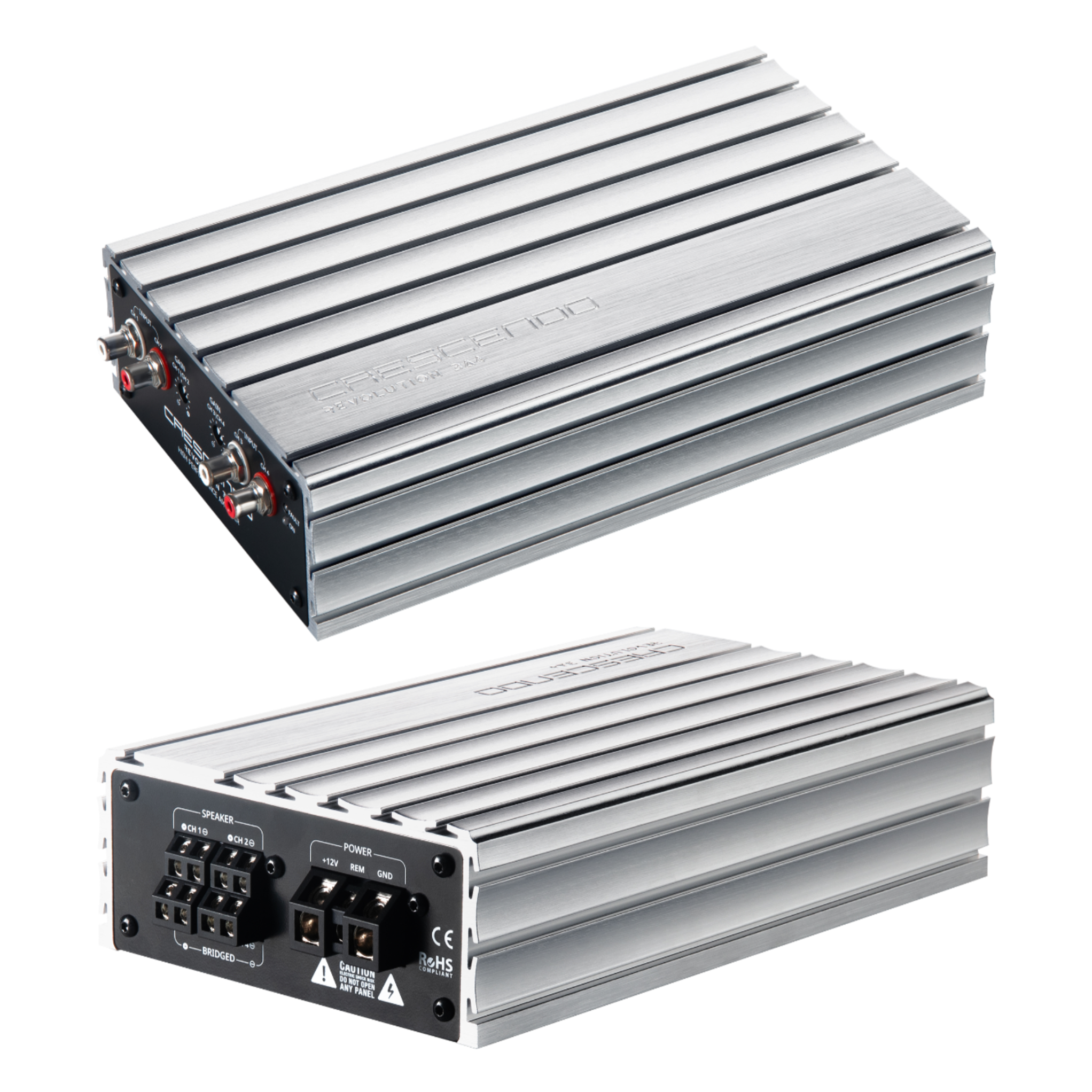

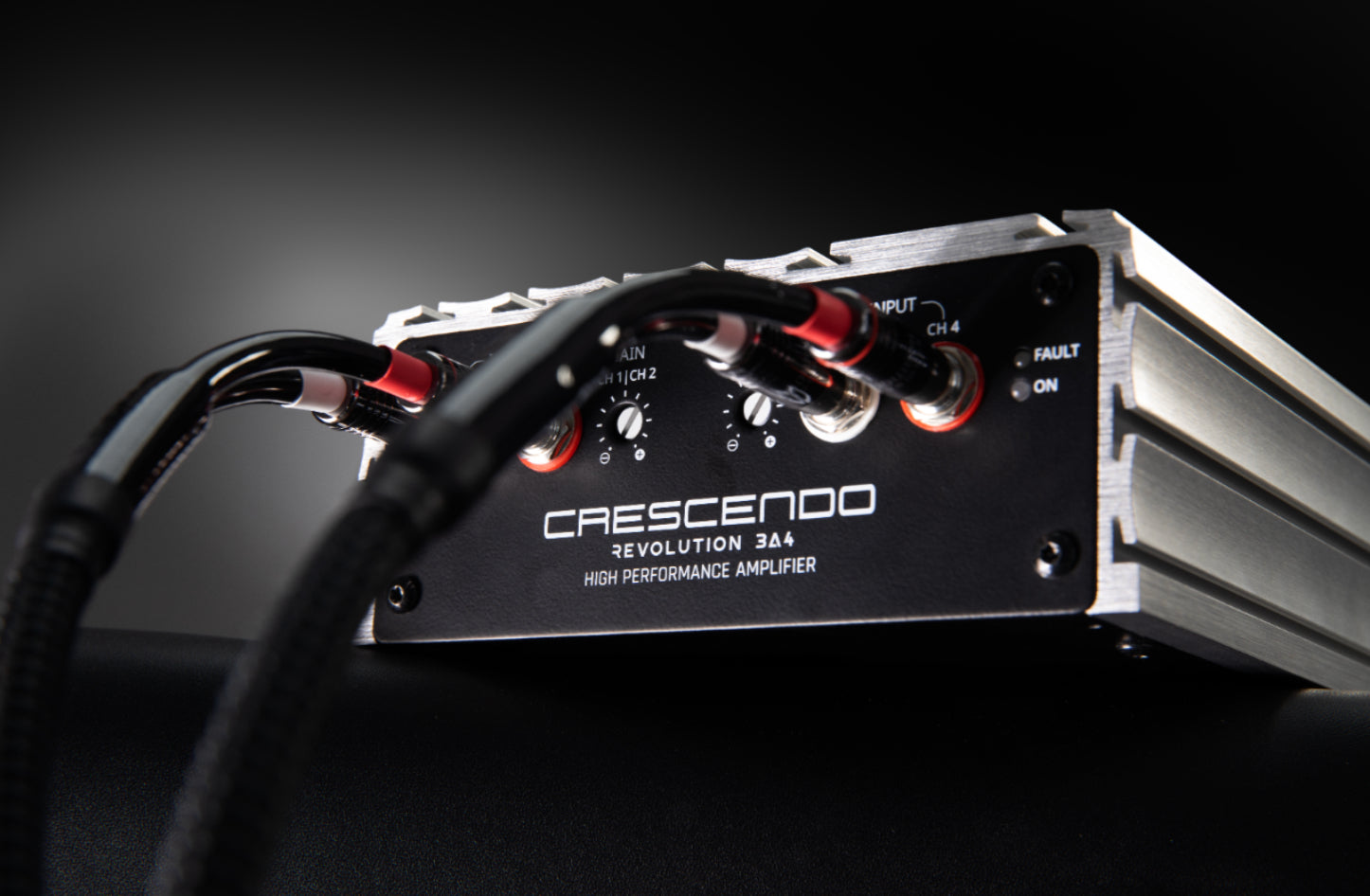

The Revolution 3A4 makes sense when you want a compact Class AB 4-channel amp that’s easy to integrate and doesn’t add complexity. The power ratings are straightforward, it’s stable down to 2 Ω stereo with bridging available, and it’s designed to run clean without relying on built-in crossovers or processing. For modern installs where space is tight and you still want predictable Class AB behaviour across common speaker loads, it’s a practical choice that’s easy to plan around and tune properly.
