• Type: 1-channel (mono) Class AB amplifier
• Power (14.4V): 450W RMS @ 4Ω / 2Ω / 1Ω

• Minimum speaker load: 1Ω

• Input sensitivity: 7.5V – 1.5V

• Input impedance (1 kHz): 25 kΩ

• Frequency response (-3 dB): 4 Hz – 80 kHz

• THD: 0.04%

• Signal-to-noise ratio (rated power): 122 dB

• Signal-to-noise ratio (CEA-2006, 1W): 95.4 dBA

• Effective damping factor: >500

• Filter: No

• Fuse: 2 × 30A

• Protection: Thermal and short circuit

• Dimensions: 270 × 150 × 60 mm

• Weight: 2.3 kg

• Finish: Brushed Grey

• Low noise and distortion for a cleaner, more detailed sound.
• Stable power delivery in real-world vehicle conditions.

• Consistent output across 4Ω / 2Ω / 1Ω loads (rated 450W each).

• No built-in crossovers or bass boost — designed to run with an external DSP.

• High damping factor for tighter control of speakers (especially subwoofers).

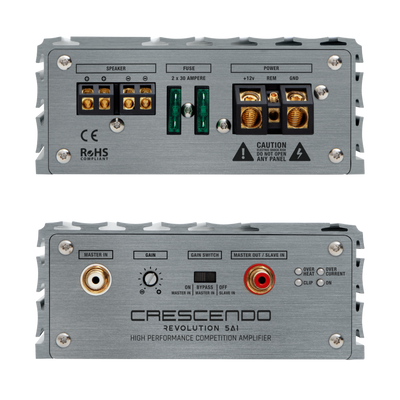

• Compact, easy-to-place chassis with straightforward RCA + gain setup.

• Built-in protection for thermal and short-circuit faults.

• Sound-quality focused subwoofer systems where control and low-end accuracy matter
• DSP-tuned builds (because the amp has no onboard filter)

• Compact installs needing real output without a huge chassis footprint

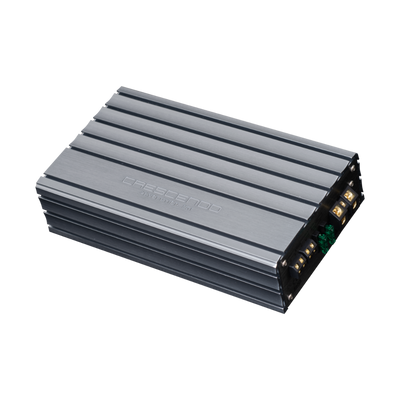

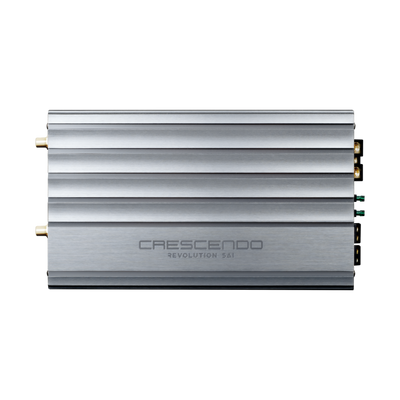

When someone wants a mono amp that prioritises control and musical bass, Class AB still has a place and the 5A1 reads like it’s built with that mindset. The 1Ω stability, strong damping factor, and “no filter” design make it a good match for modern builds where the DSP handles the shaping and the amplifier just delivers clean power.
