Goldhorn DSP10 10 channel DSP

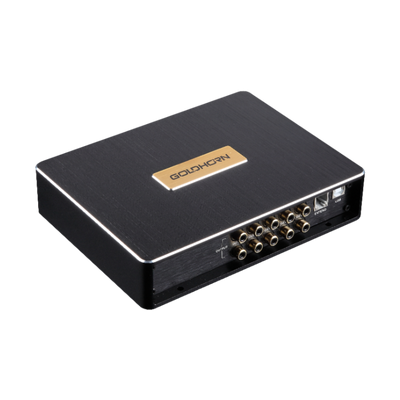

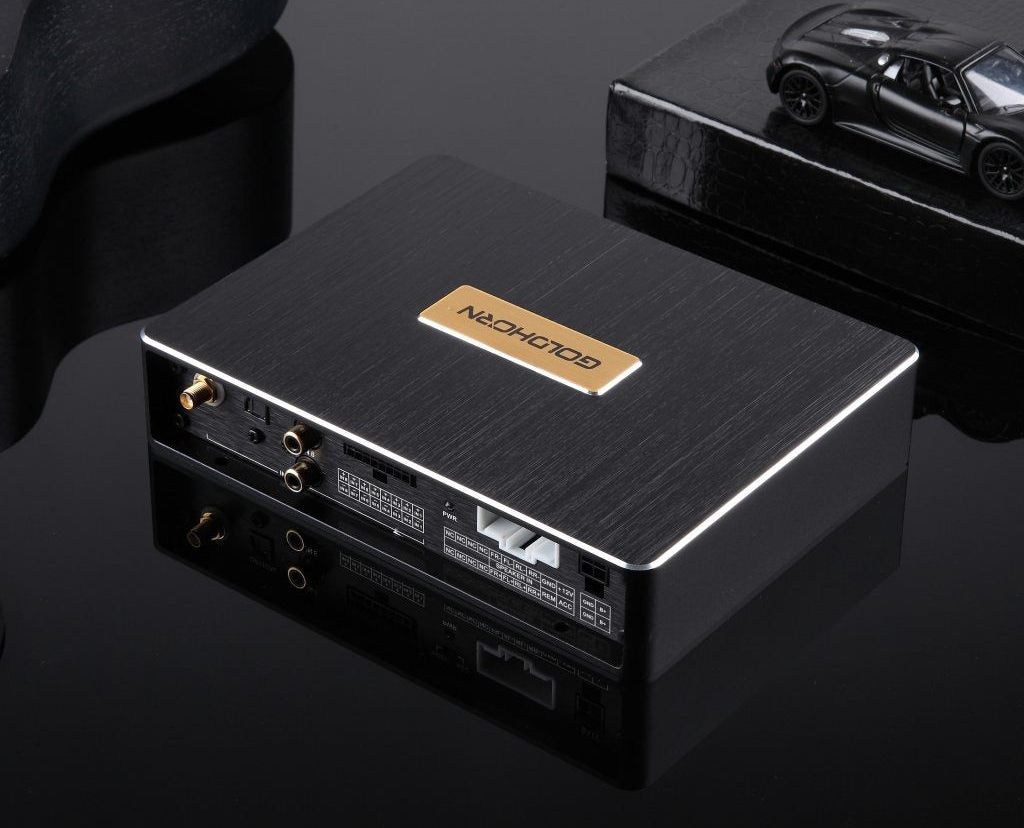

Goldhorn DSP10 10 channel DSP angled view

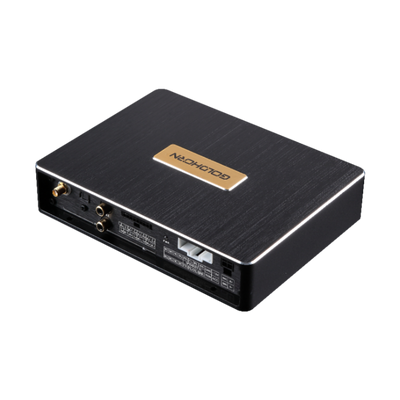

Goldhorn DSP10 10 channel DSP back angled view

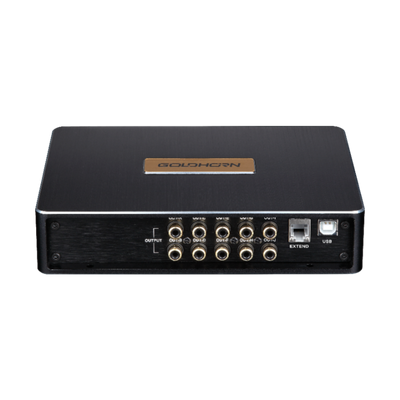

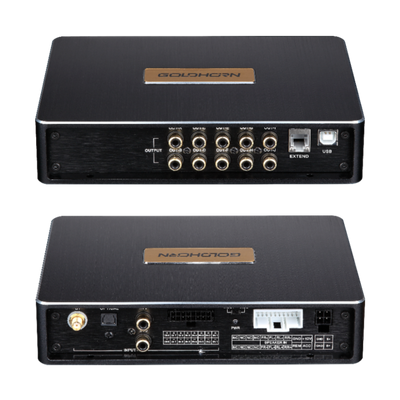

Goldhorn DSP10 10 channel DSP front view

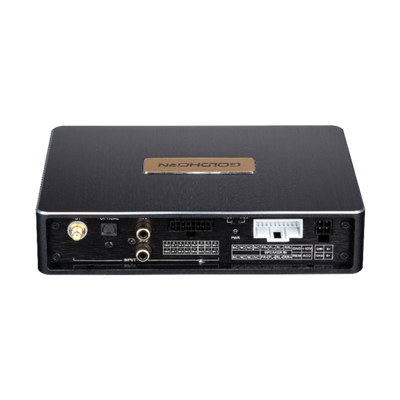

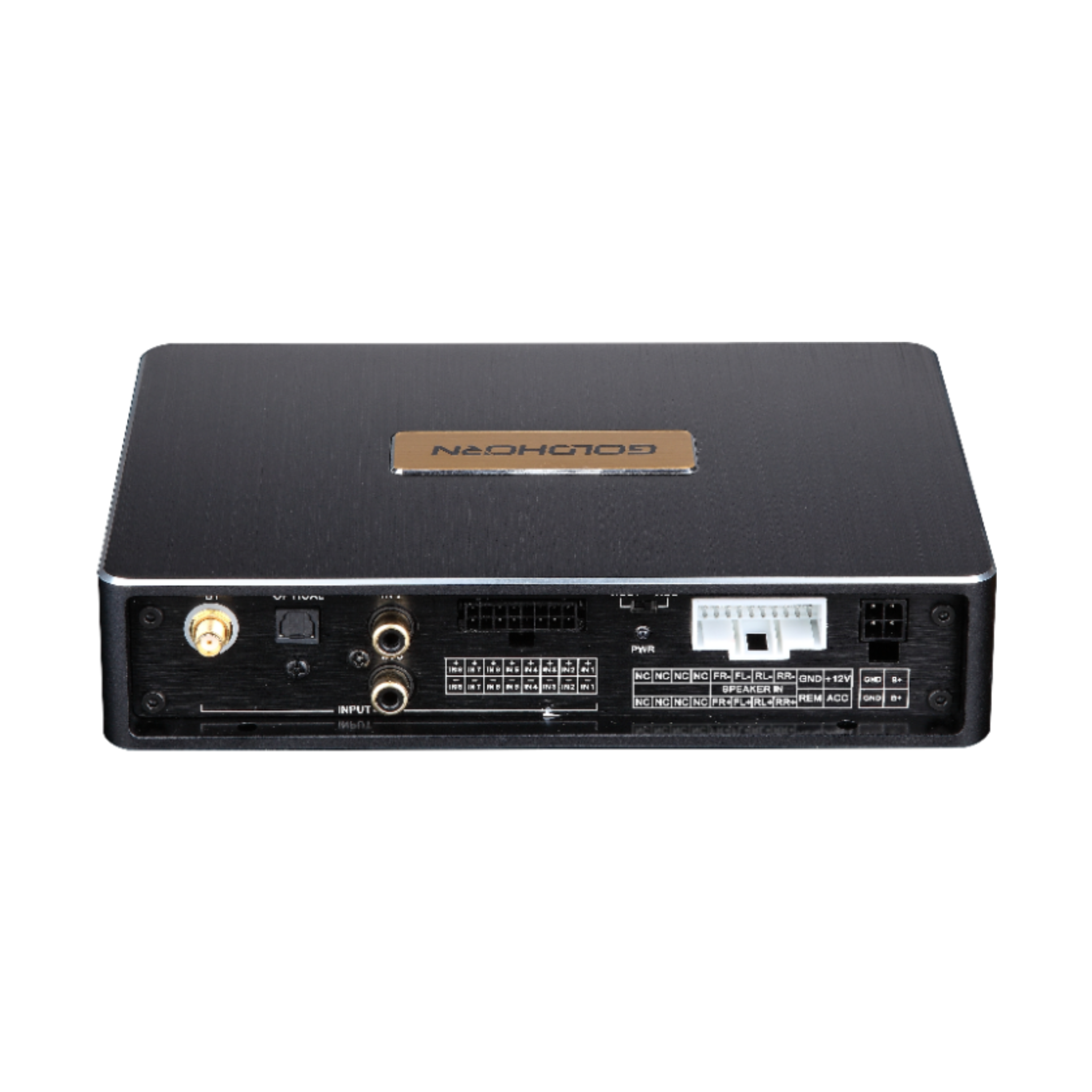

Goldhorn DSP10 10 channel DSP back view

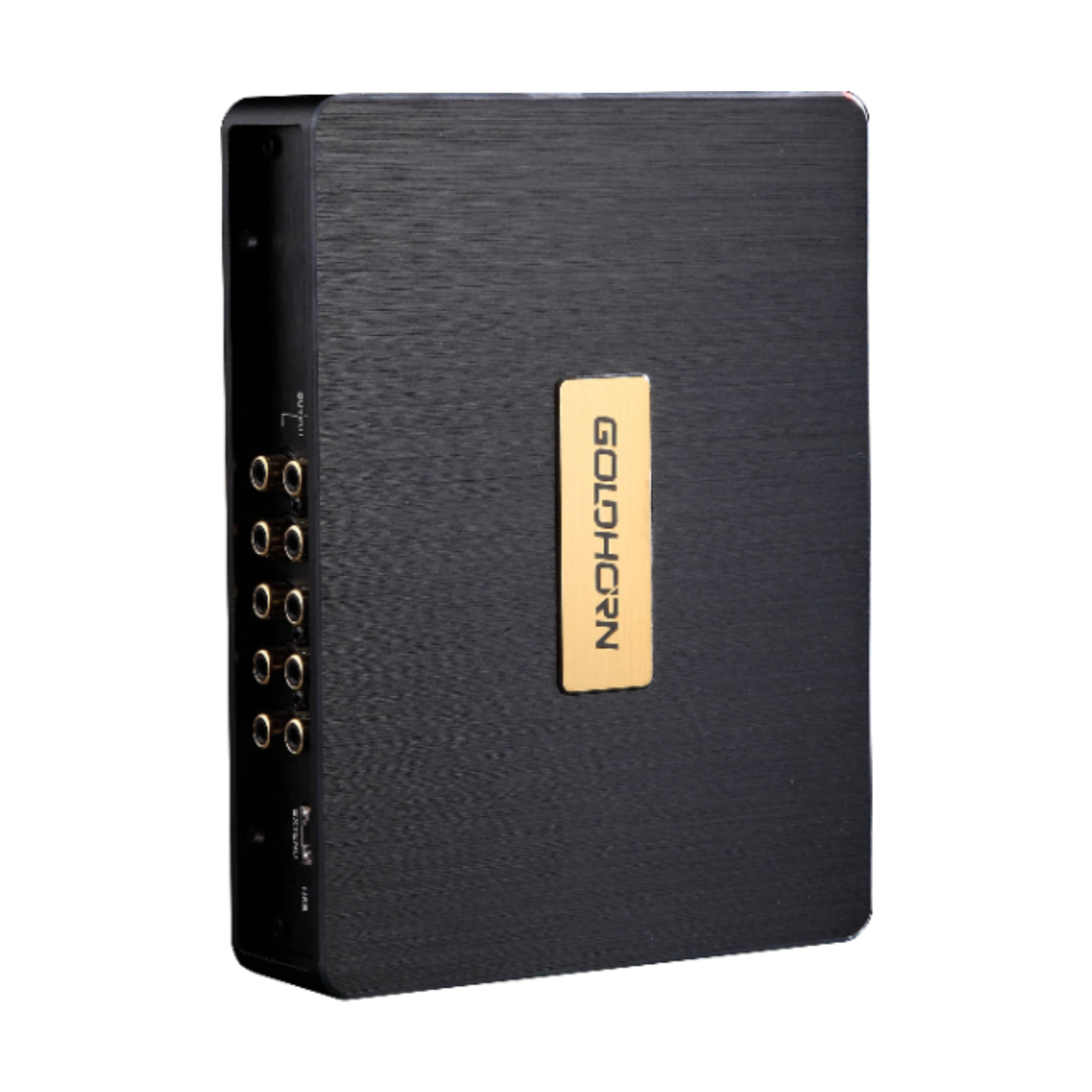

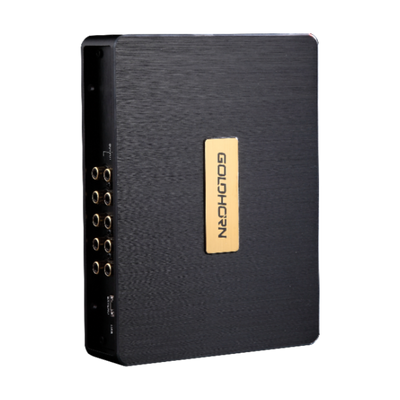

Goldhorn DSP10 10 channel DSP sideways

Vendor:Goldhorn

Goldhorn DSP10 — 10-Channel Standalone DSP

$989.00

Goldhorn DSP10 is a 10-channel standalone digital signal processor for vehicles using external amplifiers. It provides 8 high-level inputs and 10 RCA outputs, with DSP tuning functions including multi-band EQ, crossovers, time alignment, and phase control.

Hurry, only 6 items left in stock!

Pickup available at 4/31 Oxleigh Drive

Usually ready in 5+ days
Need help?

Pairs well with

Authorised Australian Seller

Shipping Arrives in 7-14 days

Standard 12 Month Warranty

Expert Support Available

Product details

Advanced Specifications
  • DSP processing: 10-channel ADAU1453
  • EQ: 31-band per channel, ±15 dB, 0.1 dB steps
  • Audio processing resolution: 24-bit / 192kHz
  • DAC: PCM1691
  • ADC: 2 × PCM1840
  • Op-amp: MC33078
  • Inputs: 8 × high-level inputs
  • Digital input: Optical (confirmed in your new text)
  • Outputs: 10 × RCA outputs @ 6V
  • Time alignment: 0–20 ms, 0.02 ms steps
  • Phase rotation: 0–359°
  • Frequency response: 20 Hz – 40 kHz
  • Performance: THD+Noise < 0.002%, S/N >108 dB
  • Operating voltage: 10–16 V
  • Presets: 8
  • PC connection: USB-B
  • Start-stop ready + EPS protection: Yes
  • Dimensions: 193 × 146 × 41 mm
Key Features
  • Standalone 10-channel DSP for systems using external amplifiers
  • 8-channel high-level input for factory integration
  • 10-channel RCA output @ 6V for strong signal into multi-amp builds
  • 31-band EQ per channel for detailed tuning control
  • Goldhorn SKYATOM Surround System for immersive staging options
  • Dynamic Loudness Control support
  • Bluetooth 5.0 streaming with codec support (aptX HD / aptX / AAC / SBC)
  • DSP tuning suite includes crossovers, time alignment, and variable phase control
Best Suited For
  • OEM integration builds where you’re retaining factory head unit audio via high-level inputs
  • Systems using external amplifiers (front stage + rear + sub, or fully active front stage)
  • Installs needing strong tuning control: EQ, crossover, time alignment, and phase management
  • Setups where Bluetooth streaming is required as an input source
Why OSCA Backs This Product

If you’re running external amps and want the tuning and routing control to actually “finish” a system properly, DSP10 makes sense. The channel count covers most real-world active setups, the high-level inputs keep OEM integration clean, and the SKYATOM option gives you an extra tool for staging without needing to change head units.

Documents

Goldhorn DSP10 Tech Specs

A Serious System for Serious Tuning

The DSP10 is designed to give you complete control over your system without compromise. It delivers a clean, highly refined signal that transforms how your system sounds, unlocking clarity, balance, and detail that factory setups and basic processors simply can’t achieve.

Designed as a standalone DSP, it’s the ideal foundation for serious builds. Pair it with your choice of amplifiers and shape the system exactly how you want it. You’re not paying for amplification you don’t need, just pure processing power where it matters.

For enthusiasts chasing better sound without jumping into ultra high-end pricing, the DSP10 hits a sweet spot. It brings real tuning capability, flexibility, and performance into a compact, accessible platform making it one of the smartest upgrades you can make to any system.
