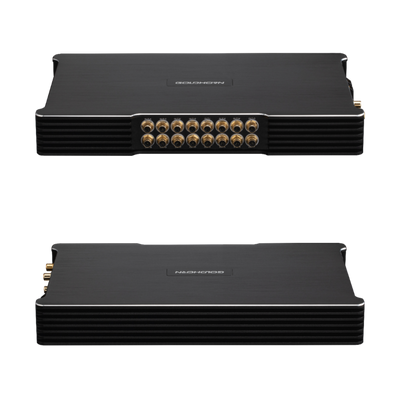

Goldhorn DSPA 1616 Ultra DSP amplifier

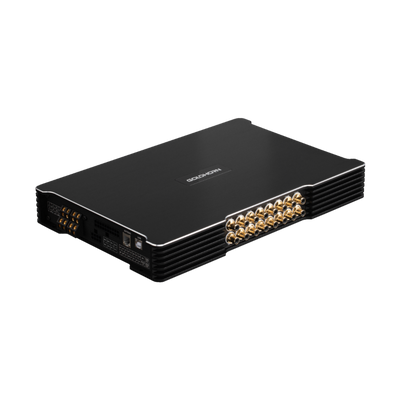

Goldhorn DSPA 1616 Ultra DSP amplifier front angled view

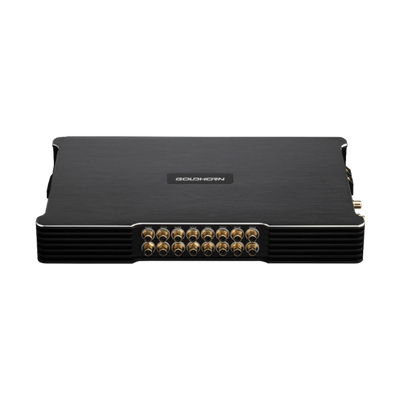

Goldhorn DSPA 1616 Ultra DSP amplifier front

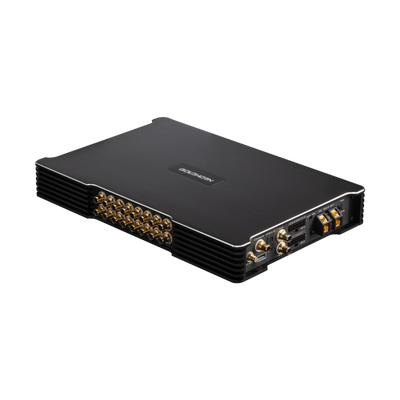

Goldhorn DSPA 1616 Ultra DSP amplifier angled view

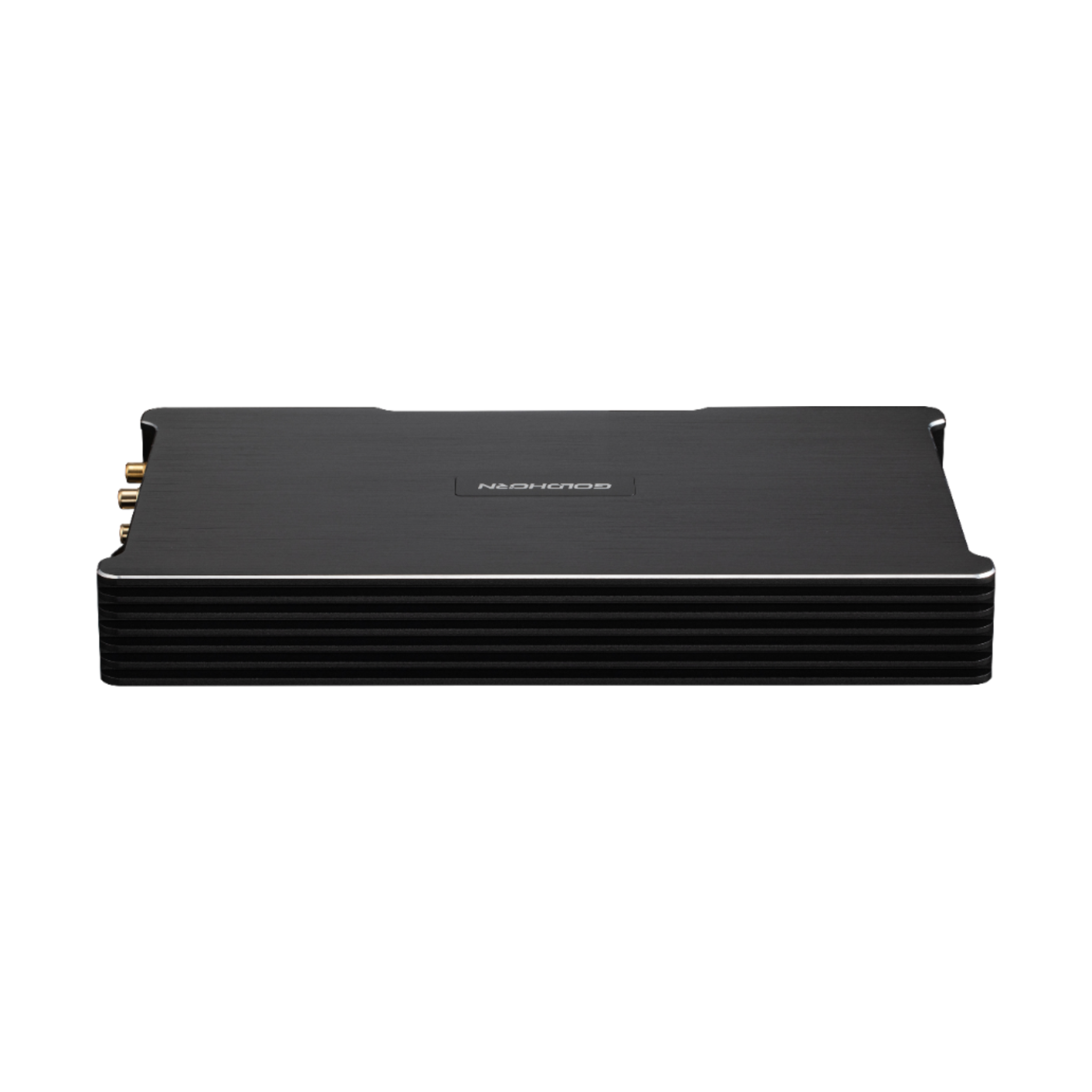

Goldhorn DSPA 1616 Ultra DSP amplifier back

Vendor:Goldhorn

Goldhorn DSPA 1616 Ultra — 24-Channel Car Audio DSP Amplifier

$2,262.00

Goldhorn DSPA 1616 Ultra is a DSP amplifier processor designed for over-twenty-channel car audio systems. It combines 24-channel DSP outputs with 16 channels of onboard amplification (12 × 80 W + 4 × 150 W max), plus high-level and RCA input/output options for multi-channel OEM integration and expanded system planning.

Pickup available at 4/31 Oxleigh Drive

Usually ready in 5+ days
Need help?

Pairs well with

Authorised Australian Seller

Shipping Arrives in 7-14 days

Standard 12 Month Warranty

Expert Support Available

Product details

Advanced Specifications
  • DSP outputs: 24-channel DSP outputs
  • Amplified channels: 16-channel digital/Class D amplification
  • Amplifier power (max): 12 × 80 W @ 4Ω + 4 × 150 W @ 4Ω
  • Inputs: 16 × high-level inputs + 2 × RCA inputs
  • Outputs (high level): 16 × high-level outputs
  • Outputs (RCA): 12 × RCA pre-outs
  • DSP processor: Analog Devices ADAU1463 SigmaDSP
  • DAC: Dual AKM AK4458VN (32-bit / 768 kHz)
  • ADC: 2 × PCM1840 (24-bit)
  • Op-amp: MC33078
  • Output EQ: 31 bands per channel (±15 dB, 0.1 dB steps)
  • Input EQ: 5 bands per channel (±15 dB, 0.1 dB steps)
  • Time alignment: 0–20 ms (0.02 ms steps)
  • Phase control: 0–359° variable
  • Presets: 8 user-programmable
  • Bluetooth: 5.0 (aptX HD / aptX / AAC / SBC)
  • Digital inputs: 1 × optical (192 kHz / 24-bit), 1 × coaxial (192 kHz / 24-bit)
  • Operating voltage: 10–16 V DC
  • Start-stop ready: Yes
  • EPS error protection: Yes
  • Dimensions: 332 × 217 × 43 mm
  • Chassis: Black anodized aluminum
  • PC connection: USB-B
  • Software: 64-bit Windows 8/8.1/10/11
Key Features
  • 24-channel DSP output architecture for multi-speaker system layouts
  • 16-channel integrated Class D amplification with mixed power channels for system planning
  • High channel-count high-level I/O and RCA I/O for OEM integration and expansion
  • Designed for over-twenty-channel vehicle audio upgrade paths
  • Built-in DSP tuning structure with per-output EQ control and input EQ/delay pre-adjustment
Best Suited For
  • Vehicles with large factory speaker counts where a high number of amplified channels is required
  • Builds aiming to power most (or all) channels from one integrated DSP/amp chassis
  • OEM integration plans that need high-level input count plus DSP processing headroom
  • Multi-way active systems where channel mapping and tuning flexibility are the priority
Why OSCA Backs This Product

If the goal is to run a genuinely large speaker count without building a rack of separate amps, this is the type of unit we look at first. The 16 amplified channels and 24-channel processing headroom make it easier to map complex factory layouts, keep the wiring disciplined, and still leave room for proper tuning. It’s a practical approach when you need lots of channels done cleanly, from one chassis.

Documents

DSPA 1616 Ultra Tech Specs DSPA 1616 Ultra Owners Manual

360° Sound, Fully Controlled

The DSPA 1616 Ultra is built to surround you in sound, delivering a true 360° listening experience with depth, width, and precision that fills the entire cabin. Every detail is placed exactly where it should be, creating a sense of space and realism that goes far beyond traditional systems, with clarity and separation that brings your music to life.

Combining powerful multi-channel amplification with advanced processing, the 1616 Ultra gives you complete control over every part of your system. From front stage to sub-bass, everything is fully adjustable and seamlessly integrated, allowing you to shape the sound exactly how you want it. Designed for high-end builds, it brings together power, flexibility, and refinement in a single platform built for serious enthusiasts chasing a true no-compromise upgrade.

REAL CAR AUDIO

Backed by People Who Live it

The Gold Standard in Car Audio

Since its establishment in 2004, Goldhorn Electronics has risen to the forefront of China’s high-end car audio market. Drawing on decades of experience in high-fidelity sound and automotive electronics, Goldhorn engineers develop products designed to resolve musical nuance and accuracy inside the acoustically complex vehicle environment. With in-house research, manufacturing, and technical support, the brand has earned recognition both domestically and internationally for its refined, performance-driven solutions.
