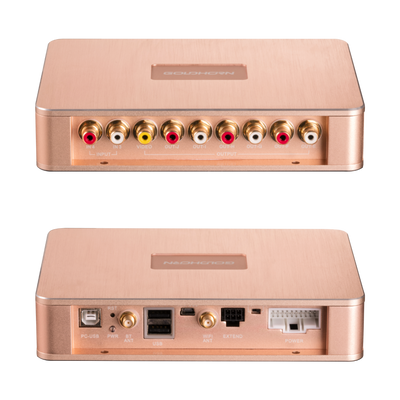

Goldhorn P1 DSPA DSD player with DSP amplifier

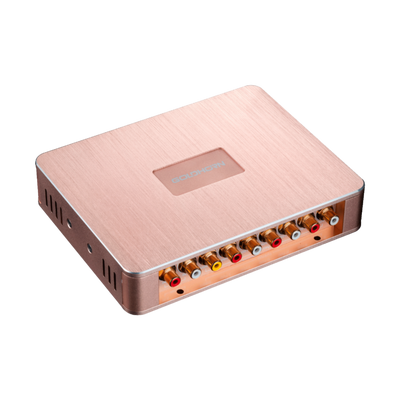

Goldhorn P1 DSPA DSD player with DSP amplifier top view

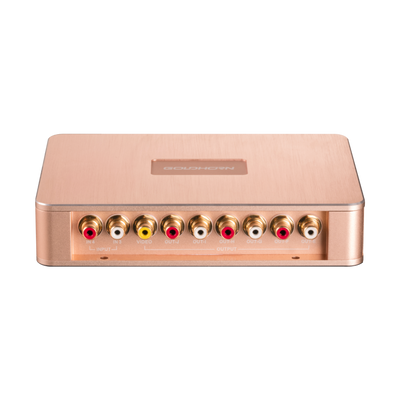

Goldhorn P1 DSPA DSD player with DSP amplifier front

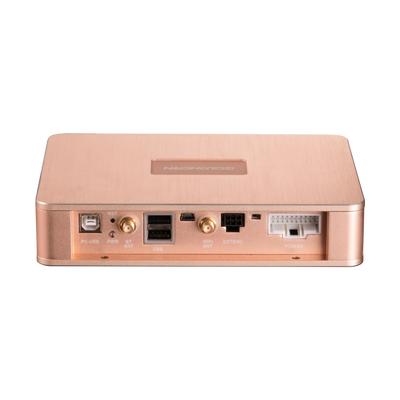

Goldhorn P1 DSPA DSD player with DSP amplifier back

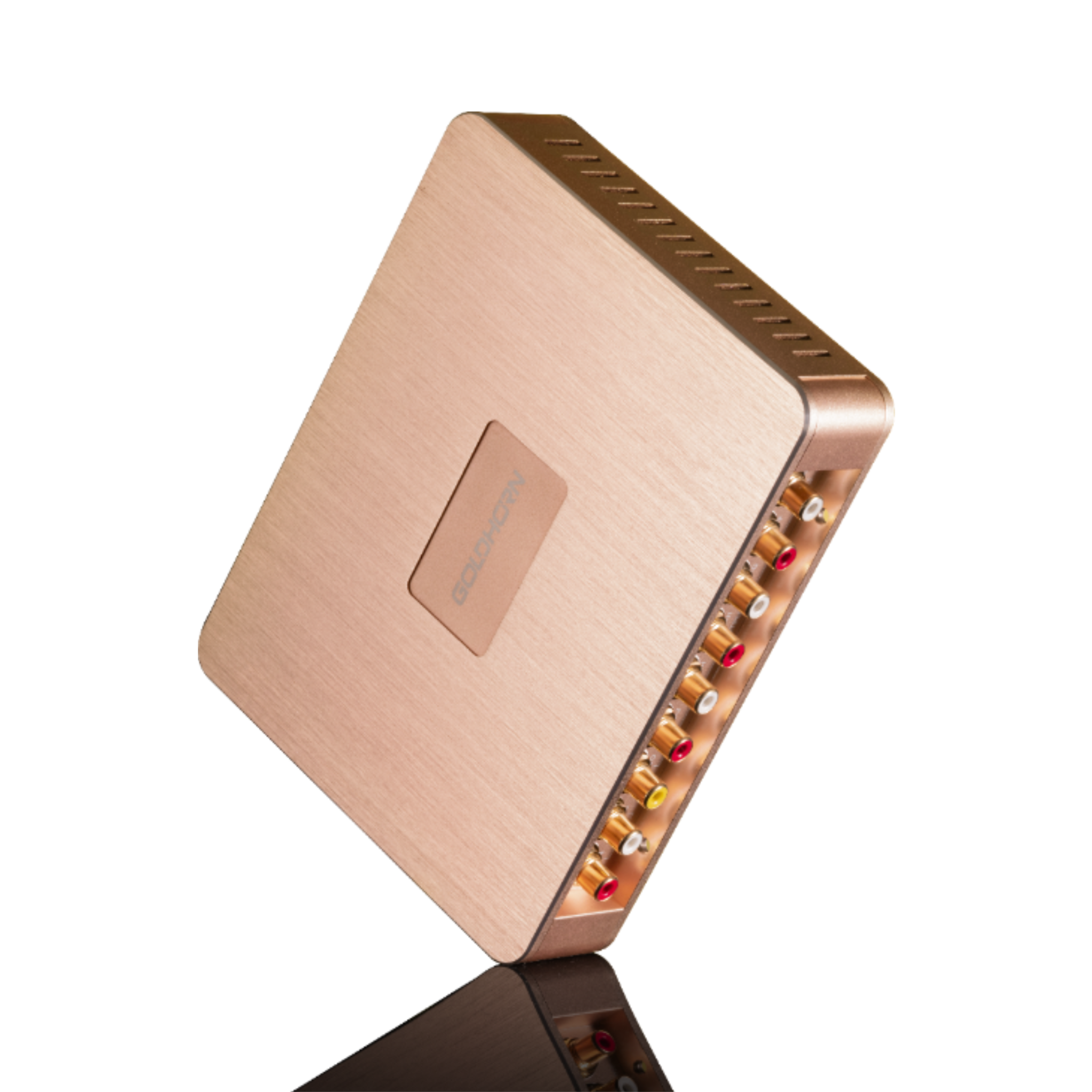

Goldhorn P1 DSPA DSD player with DSP amplifier angled view

Vendor:Goldhorn

Goldhorn P1 DSPA — 10-Channel DSD Player with DSP Amplifier

$981.00

Goldhorn P1 DSPA is an all-in-one unit combining a digital player (DSD256 hardware decoding), a 10-channel DSP amplifier, and Bluetooth 5.0 playback. It includes a built-in 4-channel Class AB amplifier (up to 65 W per channel), with 4 high-level outputs and 6 RCA outputs that can be used independently for flexible system planning.

Pickup available at 4/31 Oxleigh Drive

Usually ready in 5+ days
Need help?

Pairs well with

Authorised Australian Seller

Shipping Arrives in 7-14 days

Standard 12 Month Warranty

Expert Support Available

Product details

Advanced Specifications
  • DSP outputs: 10-channel platform
  • Amplifier: 4-channel Class AB, up to 65 W per channel
  • Outputs: 4 high-level outputs, 6 RCA outputs
  • DSP chip: ADI ADAU1452
  • DAC: TI PCM1690 (24-bit / 192 kHz)
  • ADC: 2 × TI PCM1862
  • Output EQ: 31-band per channel (±15 dB, 0.1 dB steps)
  • Input EQ: 5-band per channel (±15 dB, 0.1 dB steps)
  • USB: USB 2.0 Host × 3
  • Bluetooth: 5.0
  • PC connection: USB-B
Key Features
  • All-in-one platform: player + DSP + onboard amplification in one chassis
  • Designed for flexible system layouts: onboard amp for speakers, RCA outs for expansion
  • DSD256 hardware decoding for high-resolution playback
  • Full DSP tuning toolset with per-channel EQ, crossovers, time alignment, and phase control
  • Multiple source options: USB playback plus Bluetooth and Wi-Fi streaming
Best Suited For
  • Entry-level DSP builds where a single chassis is preferred
  • Systems needing onboard amplification for four speakers plus RCA expansion
  • Builds aiming for 2-way or 3-way active crossover layouts via RCA outputs (as stated)
  • Installs adding a subwoofer amplifier while keeping core speaker amplification onboard
  • Users who want DSD256 playback capability alongside DSP tuning control
Why OSCA Backs This Product

When the goal is a first step into DSP-based tuning without building a system from separate modules, an all-in-one platform like this keeps the architecture simple: onboard power for four channels, and RCA outputs ready for expansion. Based on the published configuration (4-channel Class AB amplification plus 6 RCA outputs), it suits common upgrade paths where speakers are powered directly while the sub stage or additional channels are handled externally.

Documents

Goldhorn P1 DSPA Tech Specs P1 DSPA Owners Manual (PDF) P1 DSPA System Examples

Entry-Level ALL-IN-ONE Solution

The P1 DSPA is the easiest way into a properly tuned DSP-based system, combining processing, amplification, and clean integration in one compact platform. Built for real-world installs, it gives you the control and refinement needed to move beyond basic upgrades and into a system that sounds more balanced, more detailed, and far more resolved.

Entry-level here does not mean stripped back. It means purposeful. The P1 DSPA delivers everything you need to build a strong foundation, with the flexibility to grow as your system evolves. For anyone looking for a smarter first step into better sound, it offers the right mix of simplicity, performance, and upgrade potential.

REAL CAR AUDIO

Backed by People Who Live it

The Gold Standard in Car Audio

Since its establishment in 2004, Goldhorn Electronics has risen to the forefront of China’s high-end car audio market. Drawing on decades of experience in high-fidelity sound and automotive electronics, Goldhorn engineers develop products designed to resolve musical nuance and accuracy inside the acoustically complex vehicle environment. With in-house research, manufacturing, and technical support, the brand has earned recognition both domestically and internationally for its refined, performance-driven solutions.
