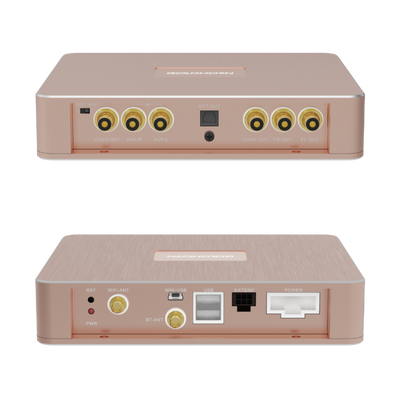

Goldhorn P1 DSD player

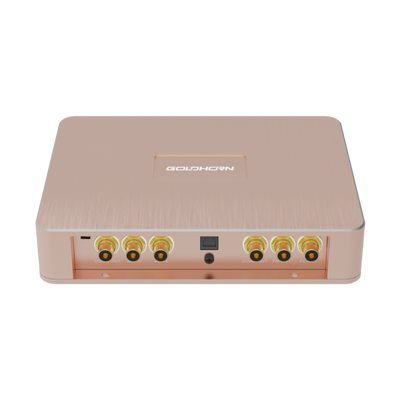

Goldhorn P1 DSD player top view

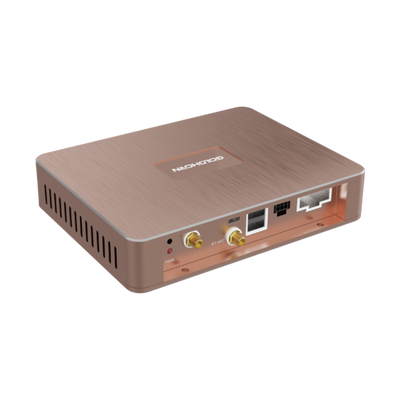

Goldhorn P1 DSD player angled view

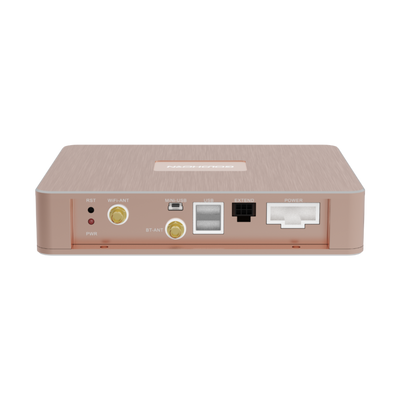

Goldhorn P1 DSD player back view

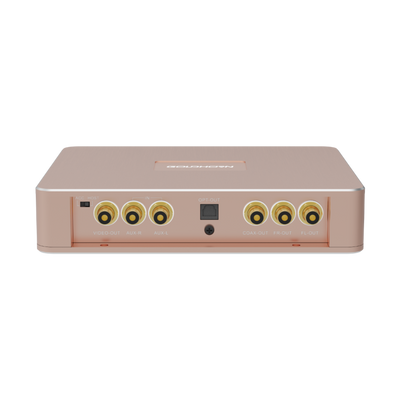

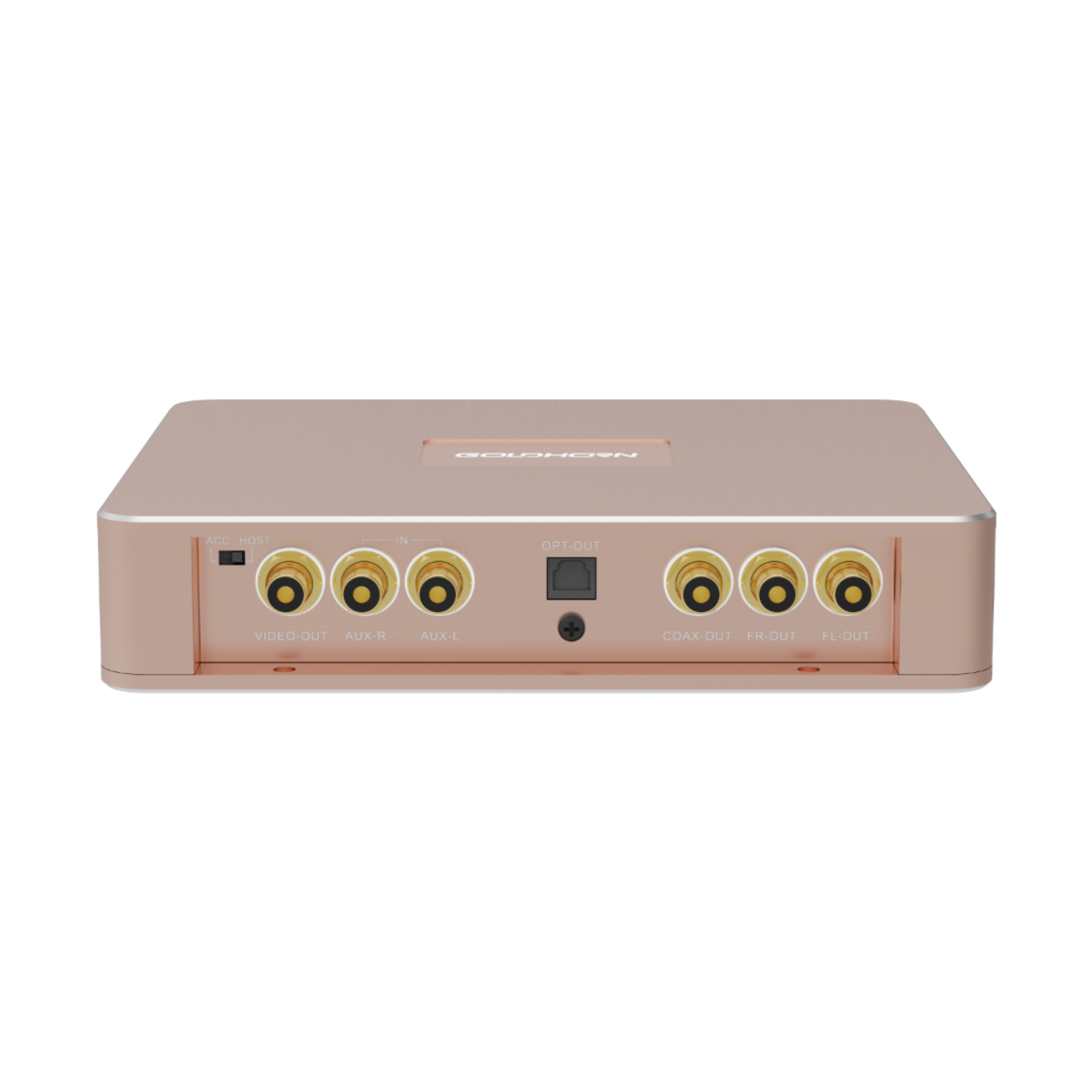

Goldhorn P1 DSD player front view

Vendor:Goldhorn

Goldhorn P1 — Hi-Res Standalone DSD Player

$1,138.00

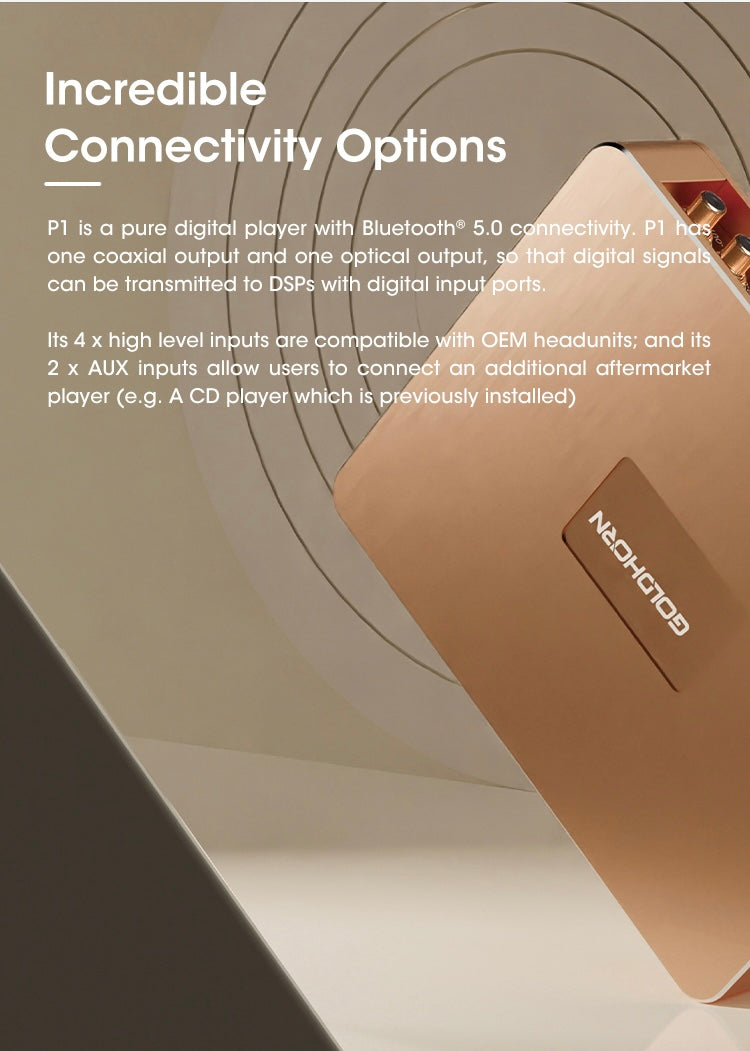

Goldhorn P1 is a pure digital car audio player (no DSP processing) designed to output clean digital audio signals via optical or coaxial outputs for use with external DSPs. It supports OEM head unit integration through high-level inputs, additional source input via AUX, and wireless playback via Bluetooth 5.0.

Pickup available at 4/31 Oxleigh Drive

Usually ready in 5+ days
Need help?

Pairs well with

Authorised Australian Seller

Shipping Arrives in 7-14 days

Standard 12 Month Warranty

Expert Support Available

Product details

Advanced Specifications
  • Hi-End components: 1 × AKM AK4490 DAC (32-bit / 768 kHz PCM); Texas Instruments OPA2604 Operation Amp; 4 × ARM Cortex A7 cores; high temperature tolerance electrolytic capacitor (high-reliability under 105°C)
  • Music Formats: Hi-res: DFF/DSF; uncompressed: WAV/FLAC/APE/AIF; compressed: MP3/AAC/OGG/WMA/MV
  • Sampling rate: PCM: 44.1kHz–768kHz / 16–32bit; DSD: DSD64/DSD128/DSD256
  • Inputs: 4 × High Level Inputs (10Vrms max.); 2 × AUX Inputs (1.7Vrms max.)
  • Outputs: 1 × Optical Output; 1 × Coaxial Output (up to 192kHz/24bit); 2 × RCA Outputs (5.6Vp-p (2Vrms) / 47KΩ)
  • Video: 1 × CVBS video output (NTSC)
  • Source Selection: Sound from factory unit / AUX / Player / Auto / Bluetooth 5.0
  • Intelligent Control: Panel control with IPS display; wireless digital remote control; APP control steering wheel control (for limited car make only)
  • Wi-Fi Standard: 802.11 b/g/n
  • Bluetooth® Receiver: Bluetooth 5.0; Profile: A2DP/AVRCP; Audio Codec: aptX/AAC/SBC
  • USB Terminals: USB2.0 HOST × 2
  • Dimensions: 180mm × 140.5mm × 36mm
Key Features
  • Pure digital player design (no DSP processing)
  • High-resolution playback support up to DSD256 and PCM up to 768 kHz (source side)
  • Optical and coaxial digital outputs for external DSP integration
  • OEM head unit compatibility via high-level inputs
  • AUX inputs for integrating an additional aftermarket source
  • Bluetooth 5.0 with aptX support
  • Multiple control methods: panel, remote, app, and steering wheel (limited compatibility)
  • External storage playback via USB host
Best Suited For
  • Systems using an external DSP with optical or coaxial input
  • Builds requiring a dedicated in-car digital music player
  • OEM head unit systems where high-level inputs are required for integration
  • Setups needing multiple source options (factory + AUX + player + Bluetooth)
  • Users running local lossless / high-resolution libraries from external storage
Why OSCA Backs This Product

When you’re building around a DSP, the quality and flexibility of the source becomes a practical system decision, not an afterthought. The P1 is straightforward in that role: it’s a dedicated player that outputs via optical or coax, supports high-resolution file formats, and still provides integration paths for OEM head units and auxiliary sources. For DSP-based systems that need a defined digital source component, the feature set is clearly aligned with that purpose.

Documents

Goldhorn P1 Tech Specs (PDF) Goldhorn P1 Owners Manual (PDF) Goldhorm P1 System Examples

A Dedicated Digital Source for DSP-Based Systems

The P1 is built for systems where source quality is treated as a priority, delivering a clean, stable signal for the rest of the system to work from. Designed as a dedicated digital player for DSP-based builds, it helps unlock greater clarity, detail, and overall refinement by giving your processor a stronger starting point.

With high-resolution playback, flexible connectivity, and easy integration into both OEM and custom setups, the P1 is a smart solution for builders who want better sound from the very beginning. It is a simple but important upgrade for systems where every part of the signal path matters.
