• Anodized aluminum cone helps deliver strong detail and clean transient response

• Neodymium motor supports accuracy and compact packaging in tight installs

• 3 ohm design helps extract more usable output from available amplifier power

• Compact format suits serious 3-way systems without demanding excessive space

• Built for SQ-focused systems where vocal clarity and tonal precision matter

• Product type: SQ midrange speaker

• Series: Uranium Series

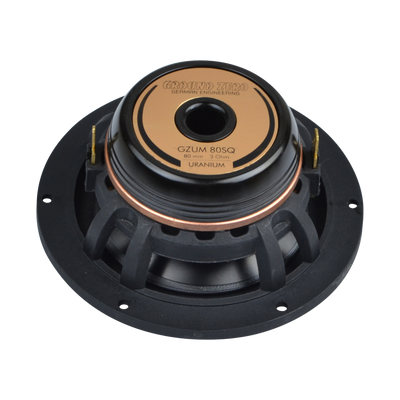

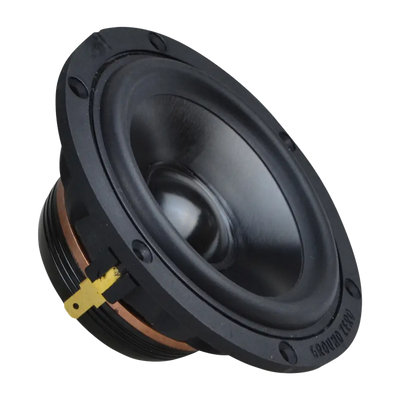

• Model: GZUM 80SQ

• Diameter: 80 mm / 3.15″

• Power handling: 50W RMS / 80W max (250 Hz HPF @ 12dB/oct)

• Impedance: 3 ohms

• Efficiency: 90 dB

• Frequency response: 200 Hz – 6 kHz

• Voice coil: 25 mm / 1″ copper

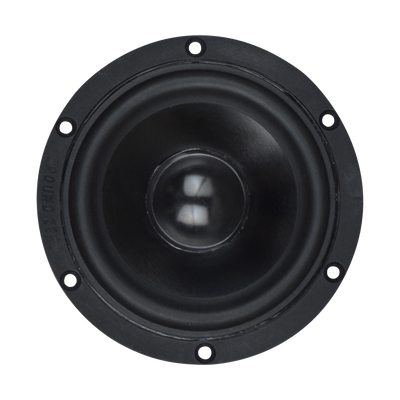

• Cone: Anodized aluminum

• Motor: Neodymium magnet

• Basket: Fiber reinforced plastic

• Terminals: Plug / soldering terminal

• Mounting diameter: 77 mm / 3.03″

• Mounting depth: 35 mm / 1.38″

• Resonance frequency (Fs): 134 Hz

• Re: 2.8 ohms

• Qms: 4.26

• Qes: 0.37

• Qts: 0.34

• Vas: 0.71 L

• Mms: 3.7 g

• BL: 4.9 N/A

• Rms: 0.73 kg/s

• Cms: 0.381 mm/N

• Le: 0.033 mH

• Xmax: 8 mm / 0.31″ p2p

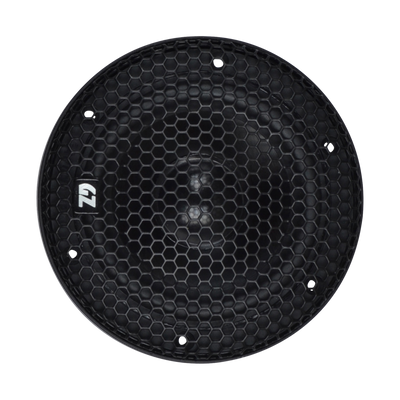

• Grille: Hexagon protection grille included

• Verification: Verified with KLIPPEL®

• Packaging: 1 pair

• High-quality 3-way front stage systems

• Active and DSP-controlled builds using a dedicated midrange

• Installations focused on vocal clarity, staging, and tonal balance

• Users wanting a compact midrange with serious resolution

• Systems paired with quality tweeters and dedicated midbass drivers

The anodized aluminum cone is a big part of what makes this driver appealing. In a good active front stage, that kind of driver can give you the cleaner attack, sharper detail, and vocal definition that makes the whole system feel more focused and believable.
